8 IRs(IR850) Day / Night 520TVL Mini CCTV Camera with 90 deg view angle

Place of Origin : china

Price : 75

Delivery Time : 3days

Payment Terms : T/T or PAYPAL

MOQ : 1pcs

Contact Now

This camera comes with high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90°) mini lens. 8 controllable IR lamps enable the effective recording distance up to 5 meters, and surveillance area up to 100 square meters in the complete darkness. This series of products are of small volume and light weight, high stability and ultra long working life. They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.

Main Features :
* 8 invisible IR lamps enable the effective recording distance up to 3 meters;
* High luminous flux (F1.2) and wide view angle (90°) mini lens;
* Surveillance area up to 100 square meters in the complete darkness;
* Small size, which is easy to install into narrow room and slim tube, etc.;
* 520TVL Digital chip synthesis technology offers true color & HD video.

8 IRs(IR850) Day / Night 520TVL Mini CCTV Camera with 90 deg view angle

Specification:

PICK UP ELEMENTSingle chip 1/3 CMOS
SYSTEMNTSC
NUMBER OF PIXELNTSC：656(H)×492(V)
SENSOR DIMENSION4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTIONApproximately 520TV Lines
SENSITIVITY0.00Lux/8m
LENS & VIEW ANGLE0.5mm F1.2 / 90 °
LAMP Control1:Light（Default） 2:On-Off 3:Self-Motion
LAMP8 IR850
VIDEO OUT1.0V p-p/75ohm
LED Control OUT1:AV(Default) 2:On-Off 3:Photosensitive Resistor
WEIGHTCamera:12gStand:15g
WORK CURRENTDC5V：70mA(Lamp Off)/185mA(Lamp On); DC12V:35mA(Lamp Off)/ 85mA(Lamp On)
POWER REQUIREMENTDC5V:(3.6-5V ) DC12V:(3.6-24V )
OPERATING TEMPERATURE- 10° C ~ +50°C , less than 90% RH
ConnectionPIN1=>Red DC5V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White LED Control OUT

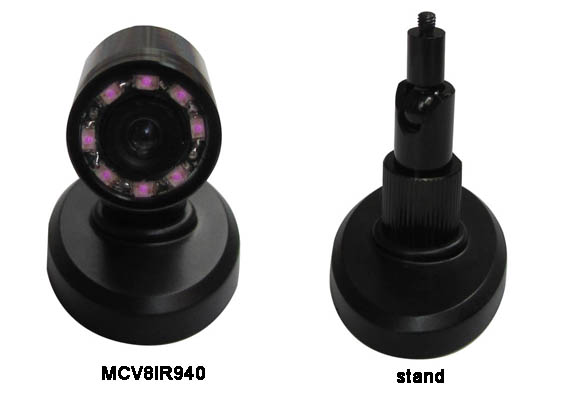

Contents:
* mini camera X1;
* stand X1;
* AC adapter X1
